Not All Steel is Created Equal: A Contractor’s Guide to Formwork Types
From massive Box Girders to precision Pier Heads, choosing the right steel formwork defines your project's speed and finish.
The Right Mold for the Right Pour
In the world of infrastructure—whether it’s spanning a river or erecting a highway viaduct—steel formwork is not just a container for concrete; it is the guarantor of structural geometry.
At Hyson Industry, we see drawings every day ranging from simple T-beams to complex, irregular pier heads. While the material is always steel (typically Q235/Q345), the design logic changes completely depending on the structural member.
Here is a breakdown of the essential steel formwork types we manufacture, categorized by their role in your project.
1. The Horizontal Backbone: Beam Formwork
These are the heavy lifters, carrying the load of the traffic above. Precision here is critical for camber and span.
Box Girder Formwork
The Giant of the Precast Yard. Box girders are favored for long spans due to their high torsional stiffness. However, they are a challenge to cast.
- The Hyson Solution: Our system includes the Bottom Mold, Side Mold, and the tricky Inner Mold. For the inner void, we often design collapsible or hydraulic systems to make stripping easy inside the confined space. Whether you need precast assembly or cast-in-situ segmentation, we ensure the variable cross-sections match your design perfectly.
T-Beam Formwork
The Economic Workhorse. Named for its T-shaped cross-section, this beam balances weight and strength.
- Key Focus: The transition between the Web and the Flange. Hyson engineers reinforce these corners to prevent deformation under the immense lateral pressure of vibration, ensuring the "T" shape remains sharp and structurally sound.
Hollow Slab Beam Formwork
Reducing the Deadweight. Used to lighten the load without sacrificing span.
- The Core Challenge: How do you create the hole? While the outer shell is rigid steel, the Inner Core Mold is the variable. We supply steel inner molds for precision, or compatible designs for inflatable rubber mandrels, depending on your budget and reuse requirements.
2. The Vertical Strength: Piers & Columns
These forms must withstand high bursting pressures and deliver a flawless "Fair-Faced" finish, as they are often the most visible parts of a bridge.
Circular Column Formwork
The Art of the Curve. Used for bridge piers and architectural columns.
- Hyson Insight: A circle is easy; a smooth circle is hard. We manufacture our arc panels with precision-rolled steel flanges. When bolted together, the seams are nearly invisible, minimizing the need for secondary grinding or polishing.
Cap Beam Formwork
The Critical Connector. Sitting atop the piers to support the bridge deck, Cap Beams (or Pier Caps) are massive.
- Safety First: Since these are installed high in the air, assembly speed matters. We design Modular Assembly systems that can be pre-assembled on the ground and hoisted in larger sections, reducing the risk for workers at height.
Pier Head Formwork
The Custom Geometric Challenge. The top section of a pier often has complex flares or curves to meet the cap beam.
- Customization: This is pure bespoke tailoring. Hyson engineers use 3D modeling to map the complex curves, ensuring the steel skin matches the architect's vision exactly while maintaining structural integrity.
3. The Finishing Touches: Protection & Details

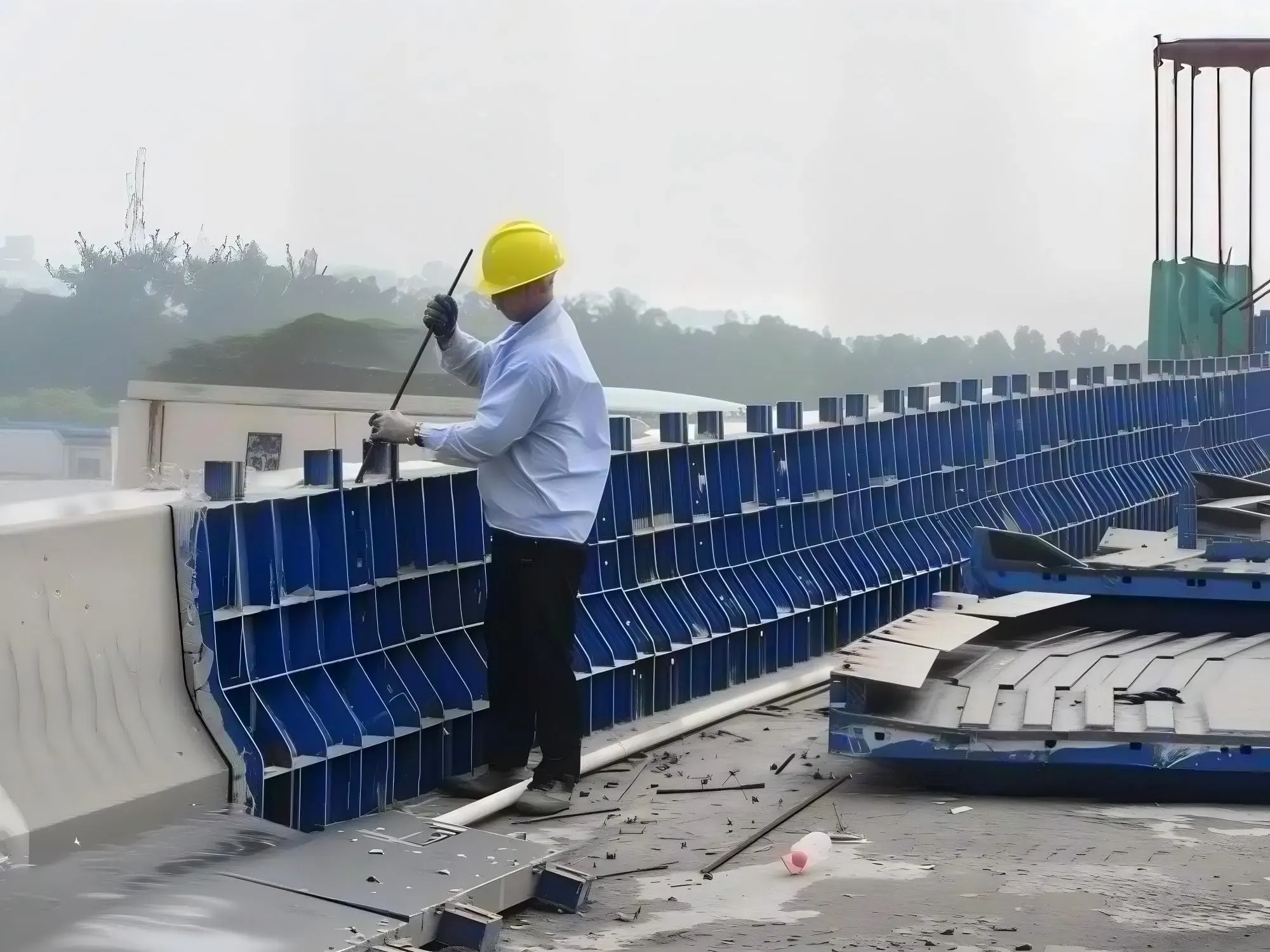

Guardrail / Crash Barrier Formwork
Aesthetics Meet Safety. Installed on the sides of the bridge deck, these prevent vehicles from going over the edge.
- Visual Impact: This is the part of the bridge drivers actually see close up. Our molds are polished to a high degree to ensure a sleek, concrete skin that resists corrosion and looks professional.
Flat / Wall Formwork
The Universal Essential. While not on the complex list, flat panels are the bread and butter of construction—used for retaining walls, abutments, and box culverts.
- Versatility: Hyson’s modular flat panels can be combined to form almost any square or rectangular structure, offering maximum reuse value for your inventory.
Why Choose Hyson Steel Formwork?
At Hyson, we don't just weld steel; we engineer solutions.
- High Rigidity: Q235 steel ensures no bulging under pressure.
- Design Support: From the drawing board to the site, we help you plan the assembly.
- Global Logistics: Whether you are in Southeast Asia or the Middle East, our modular packing ensures your formwork arrives safe and ready to work.
