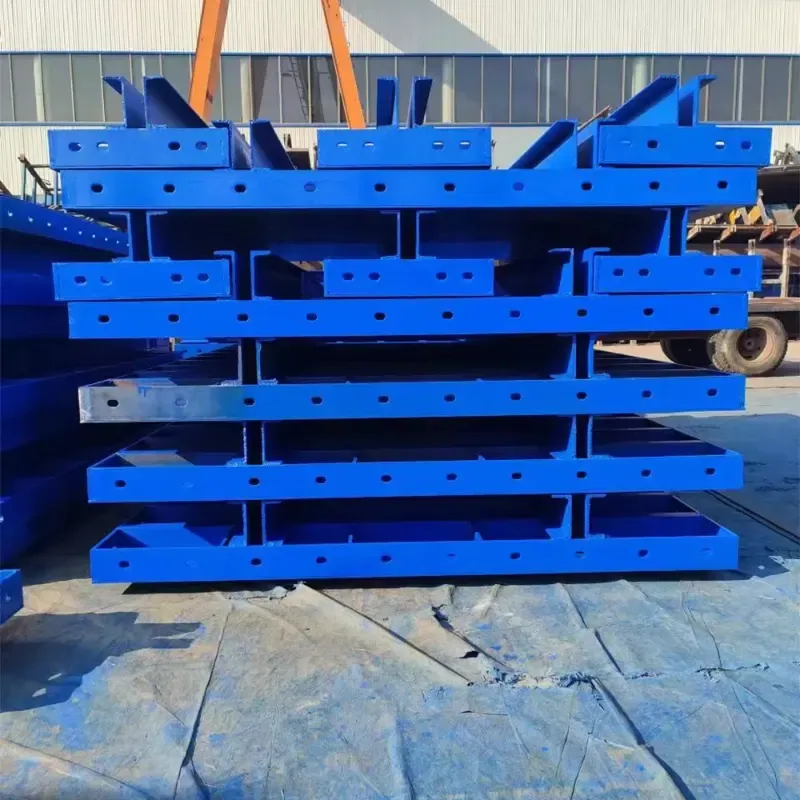

The foundation is the most critical component of any structure, and Hyson Industry’s Foundation Slab Formwork is engineered to guarantee zero failure during the crucial pouring stage. Designed for Mass Concrete applications—such as raft foundations for high-rises, bridge pile caps, and industrial equipment bases—our system withstands extreme lateral pressure without bulging or deformation. Hyson delivers more than just steel panels. We provide a complete shuttering solution. Having supplied massive foundation projects like the Sudan Power Plant and Australian Infrastructure initiatives, we understand that contractors need speed, safety, and leak-proof joints. Our modular design allows for rapid assembly on-site, significantly reducing labor costs while ensuring a pristine finish that meets international engineering standards.
Technical Specifications
| |
| |
| High-Strength Q235B / Q345B Carbon Steel |
| 4mm - 6mm (Reinforced for high pressure ) |
| 63mm / 70mm / Custom Standard |
Lateral Pressure Capacity | Up to 80 kN/m² (Ideal for deep casting / ) |
| U-Clip / Wedge Pin / Bolt & Nut |
| Powder Coating / Hot-Dip Galvanized |
| 300+ cycles (With proper maintenance ) |
Product Features
1. High Stiffness Against Lateral Pressure
Foundation slabs often involve deep pours. Our formwork features reinforced ribbing designed by engineers who have served CRCC (China Railway Construction Corp) projects. This guarantees the panels maintain their shape even under the immense pressure of wet concrete.
2. Leak-Proof "Tongue & Groove" Effect
Leveraging our ISO-certified manufacturing process, panel edges are milled to a tolerance of ±0.5mm. This precision creates a tight seal that prevents slurry leakage (honeycombing risks) and ensures the structural durability of the foundation.
3. Modular & Scalable System
Whether your foundation is square, rectangular, or irregular, Hyson’s modular units can be combined flexibly. We utilize our 12 design patents to create connection components that make corner assembly and height extensions simple and fast.
4. Durable Coating for Harsh Environments Foundations are often cast in wet, muddy, or corrosive environments. Our panels undergo specialized rust-prevention treatments (including galvanization options), significantly extending their service life and reducing long-term rental or ownership costs.
Application Scenarios

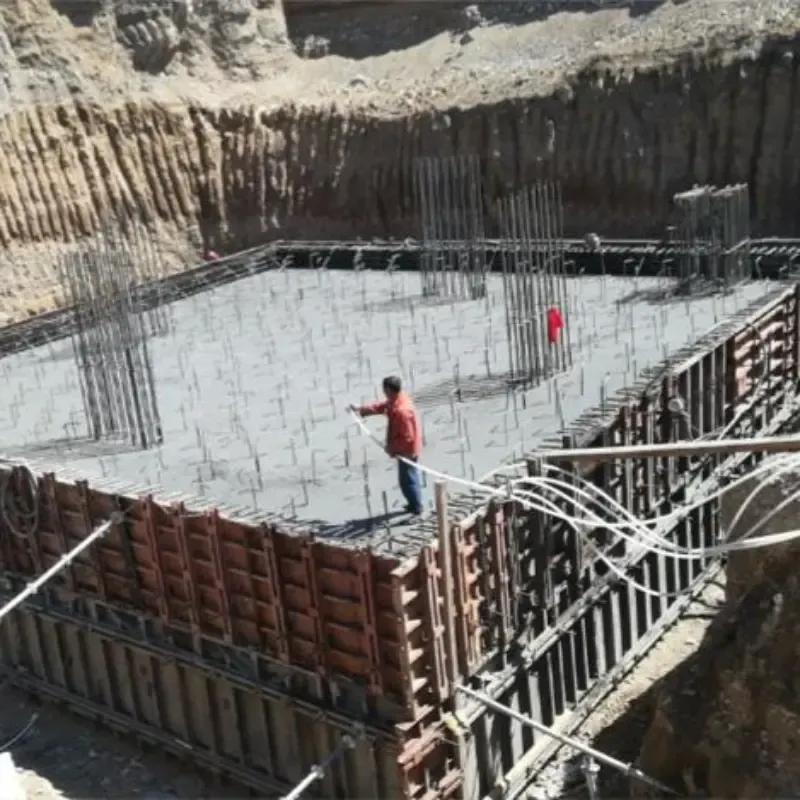

High-Rise Building Foundations (Rafts): Supports thick concrete mats required for skyscrapers, ensuring precise geometry and water-stop integration.

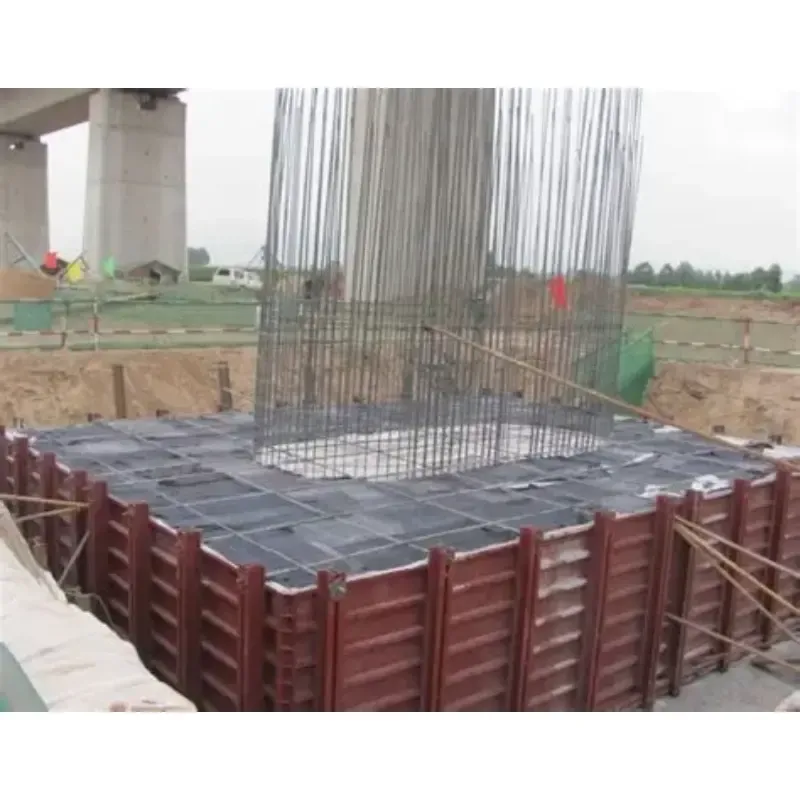

Infrastructure & Bridge Pile Caps: Used in massive bridge projects (like our work on the Taizhou Bridge) to cast robust pile caps efficiently.
Energy Sector Bases: Ideal for wind turbine foundations and thermal power plant bases requiring strict vibration resistance and density.
Precast Concrete Production: Used as the bottom shuttering for heavy precast elements in factory settings.
