Hyson Industry presents our premium Steel Guardrail Formwork, specifically engineered to meet the rigorous demands of global infrastructure projects, from highway median barriers to bridge parapets. Drawing on 15 years of manufacturing expertise and our experience supplying major projects like the Sutong Bridge, we understand that the quality of the mold dictates the quality of the concrete.

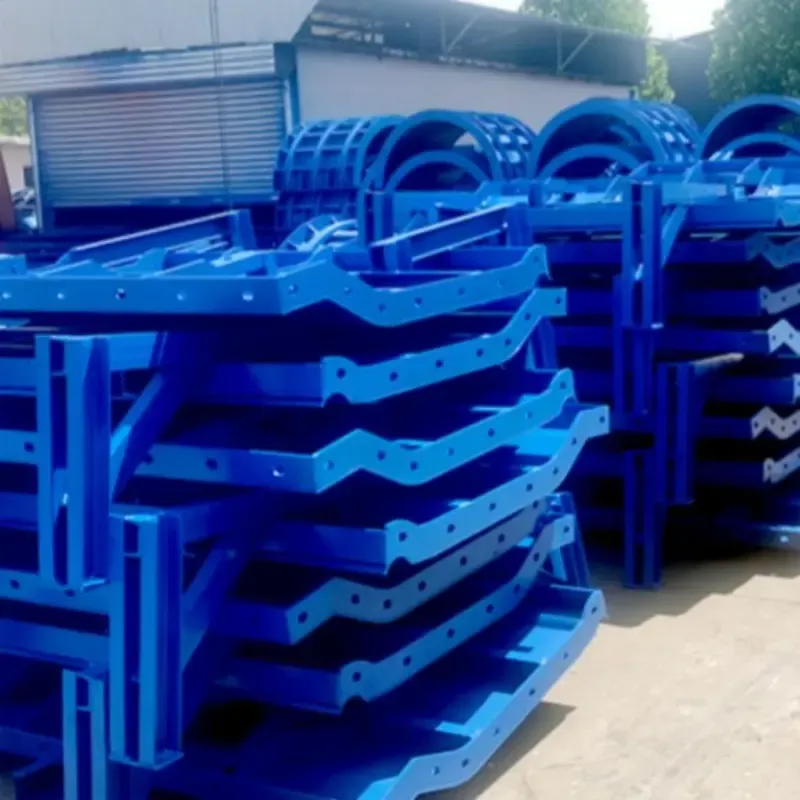

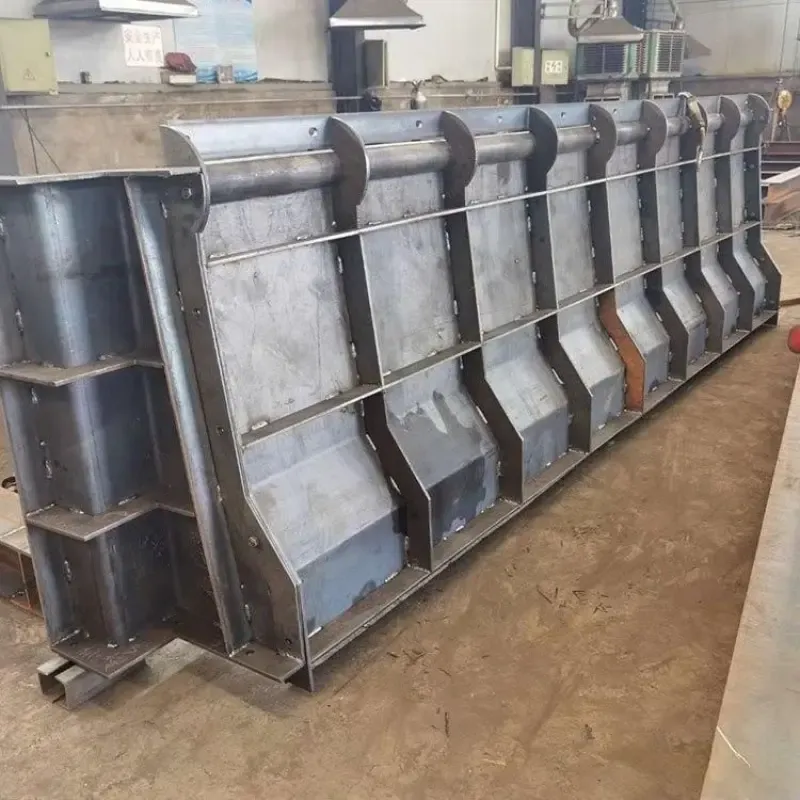

Our guardrail molds are fabricated using high-grade Q235 steel with precision CNC machining, ensuring perfect alignment and a leak-proof seal. This results in a "fair-faced" (smooth) concrete finish that requires minimal post-cast rework. Whether you are a precast concrete factorylooking for high-turnover molds for mass production (Jersey barriers), or a contractorneeding adjustable cast-in-place solutions for complex bridge curves, Hyson provides a durable, cost-effective solution that accelerates your construction timeline.
Technical Specifications
| |
| High-Strength Q235B / Q345 Steel |
| 4mm, 5mm, or 6mm (Customizable based on load requirements) |
| 63mm x 40mm / 80mm x 50mm U-steel or Flat bar |
| Rust-proof painting / Oiled / Galvanized |
| ≥ 300 times (With proper maintenance) |
| ± 1.0mm for panel flatnes |
Product Features
- Premium Steel Construction: Fabricated using certified Q235B steel, offering high rigidity, wear resistance, and the ability to withstand high concrete pouring pressure without deformation.
- Precision Welding & Manufacturing: We utilize advanced CO2 gas shielded welding, preventing slurry leakage and ensuring a seamless concrete surface.
- Standardized Rapid Assembly: Features modular designs with standardized bolt connections or quick-release pins, making assembly and stripping fast and simple, significantly reducing labor intensity.
- High Durability & Reusability: Treated for corrosion and abrasion resistance, our forms maintain dimensional accuracy over hundreds of use cycles, lowering the amortized cost per meter.
- Custom Design Capabilities: Leveraging our 12 design patents, we can tailor the curvature and profile to meet specific project blueprints (e.g., F-shape, slope variations).
