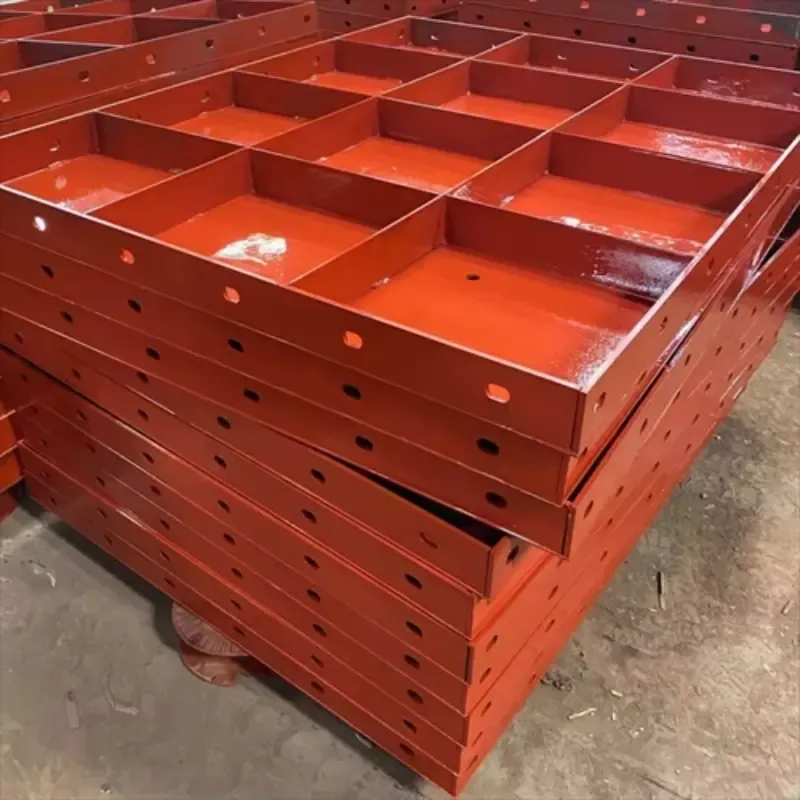

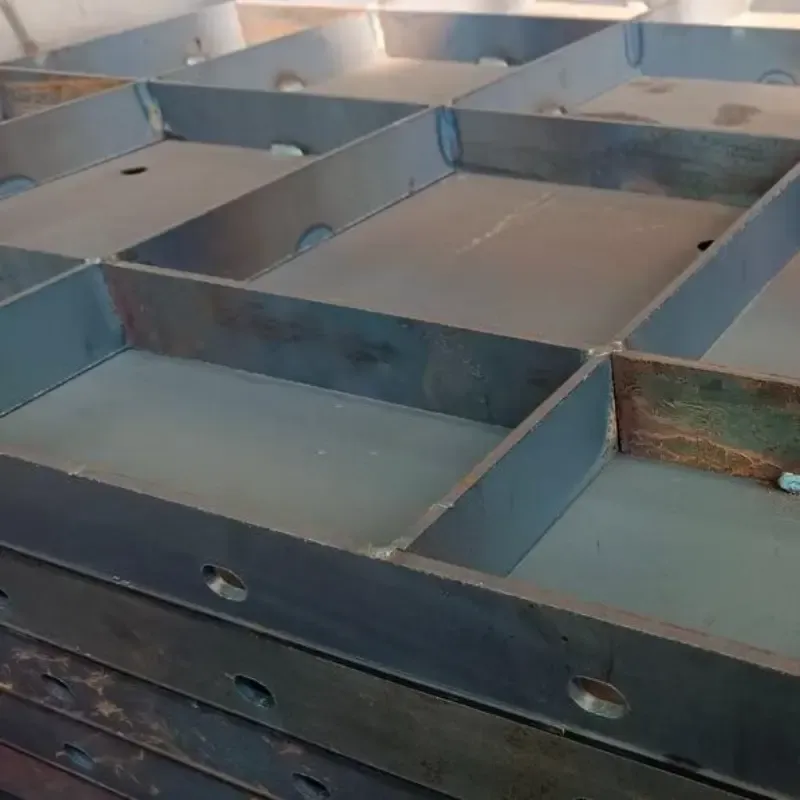

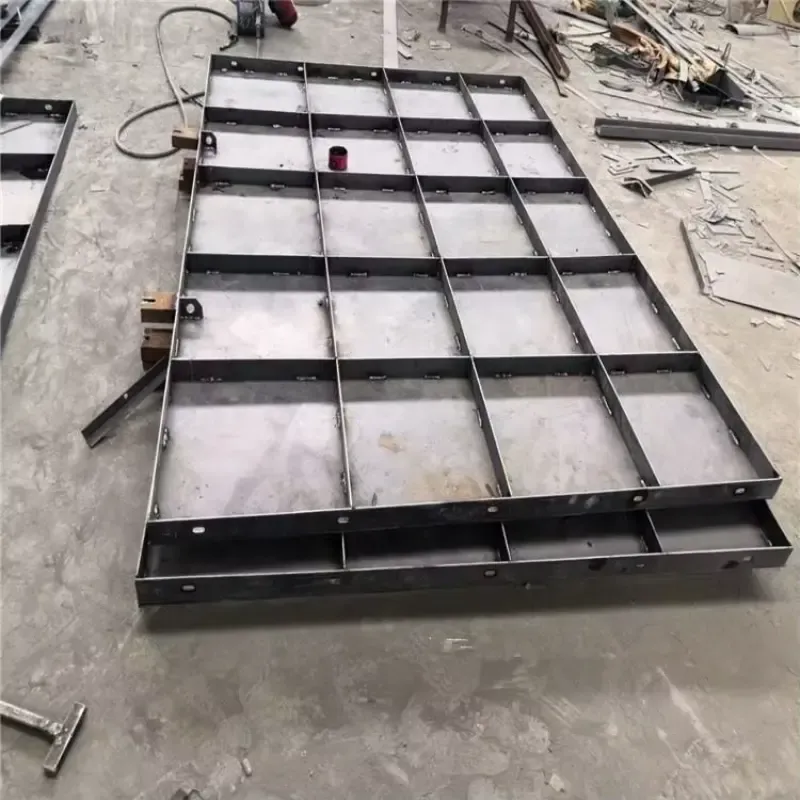

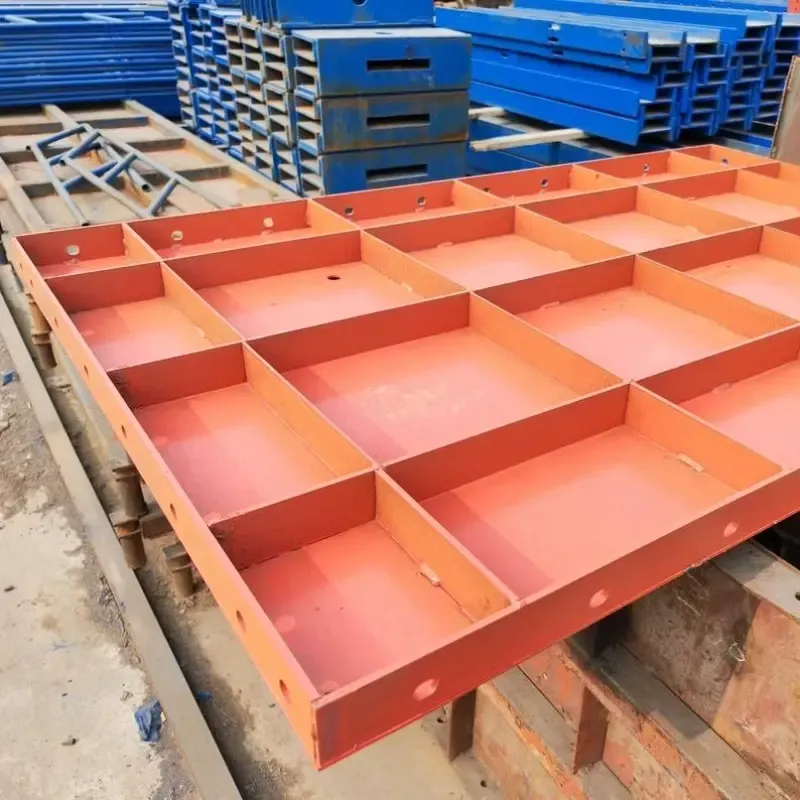

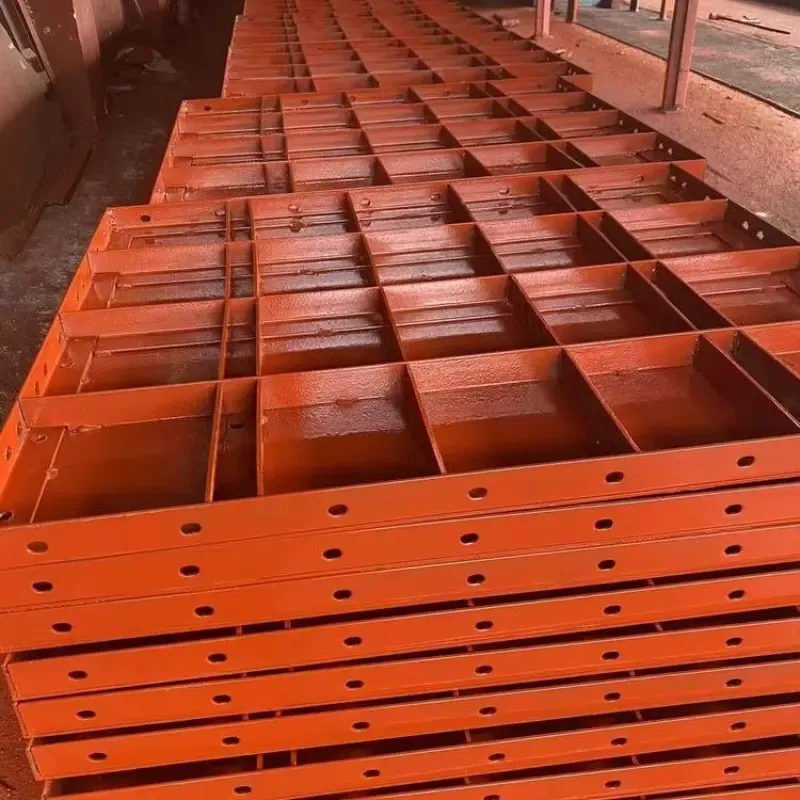

Hyson Industry’s Flat Steel Formwork is designed to meet the rigorous demands of global infrastructure and precast concrete manufacturing. Unlike standard plywood solutions, our heavy-duty steel panels offer superior rigidity and an extended service life, making them the ideal choice for cost-conscious rental companies and quality-focused contractors.

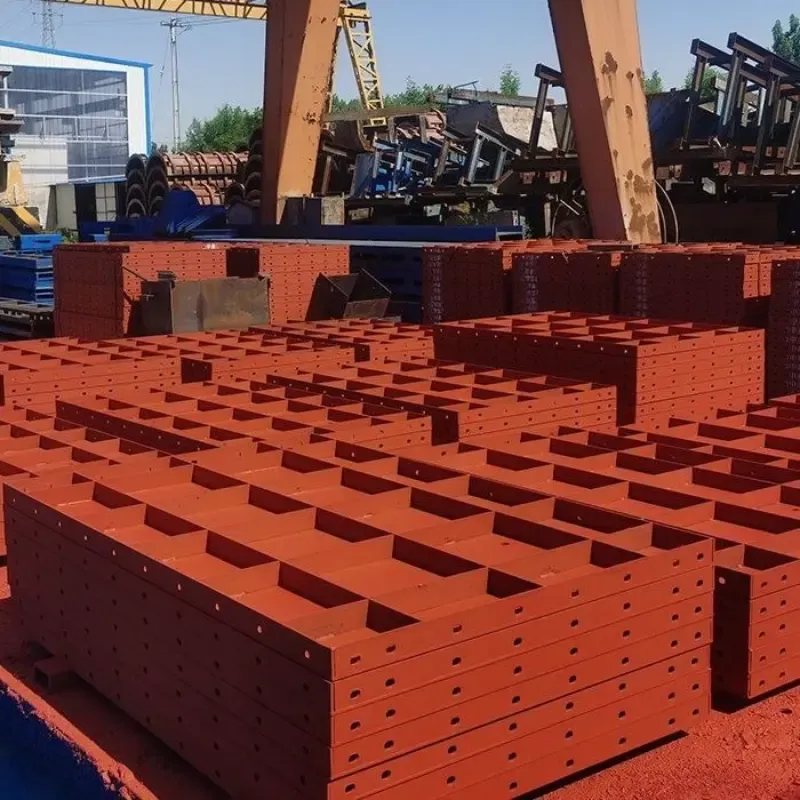

Manufactured in Nantong facility—the heart of China’s construction machinery belt—each panel undergoes strict quality control. Leveraging our experience supplying major projects like the Sutong Yangtze River Bridge, we ensure our formwork delivers a "fair-faced" concrete finish with minimal seams. Whether you are casting shear walls, bridge piers, or precast box culverts, Hyson acts as your technical partner, providing a modular system that simplifies assembly and reduces construction timelines.
Technical Specifications
| |
| Flat Steel Formwork / Steel Shuttering Panel |
| Premium Q235B / Q345B Carbon Steel |
| 3mm, 4mm, 5mm, 6mm (Customizable based on load pressure) |
| 63.5mm, 70mm, 100mm, or Custom |
| Anti-rust Oil / Painting / Powder Coating / Galvanized |
| |
| 300x1500mm, 600x1200mm, 1200x2400mm (Full Customization Available) |
Product Features
1. Precision Engineering for Leak-Proof Joints Utilizing advanced CNC cutting and robotic welding technologies, Hyson ensures that every flange and joint aligns perfectly. This "zero-gap" assembly prevents concrete leakage (slurry loss), reducing the need for secondary rework and polishing.
2. Superior Durability & High Reusability Made from high-grade Q235 steel, our forms are resistant to deformation, corrosion, and impact. With proper maintenance, Hyson steel formwork can be reused 300+ times, significantly lowering the amortized cost per pour compared to timber or plastic forms.
3. Patented Modular Design for Fast Assembly Drawing from our 12 design patents, we have optimized the slot hole layout and connection clips. This standardized modular design allows for rapid assembly and dismantling by general labor, cutting labor costs by up to 20%.
4. Smooth Surface for "Fair-Faced" Concrete The panels undergo rigorous surface grinding and anti-rust treatment. This ensures the concrete surface remains smooth and clean after demolding, meeting the aesthetic standards of modern architectural designs.
Application Scenarios
- Infrastructure & Civil Engineering: Ideal for bridge piers, abutments, and tunnel linings. Trusted by contractors similar to our partners at CCCC (China Communications Construction Company).
- Precast Concrete Plants: Perfect for casting concrete beams, staircases, and box culverts where high dimensional accuracy and clean demolding are critical.
- Commercial & High-Rise Buildings: Used for shear walls, columns, and core walls, offering high turnover rates for equipment rental companies.
