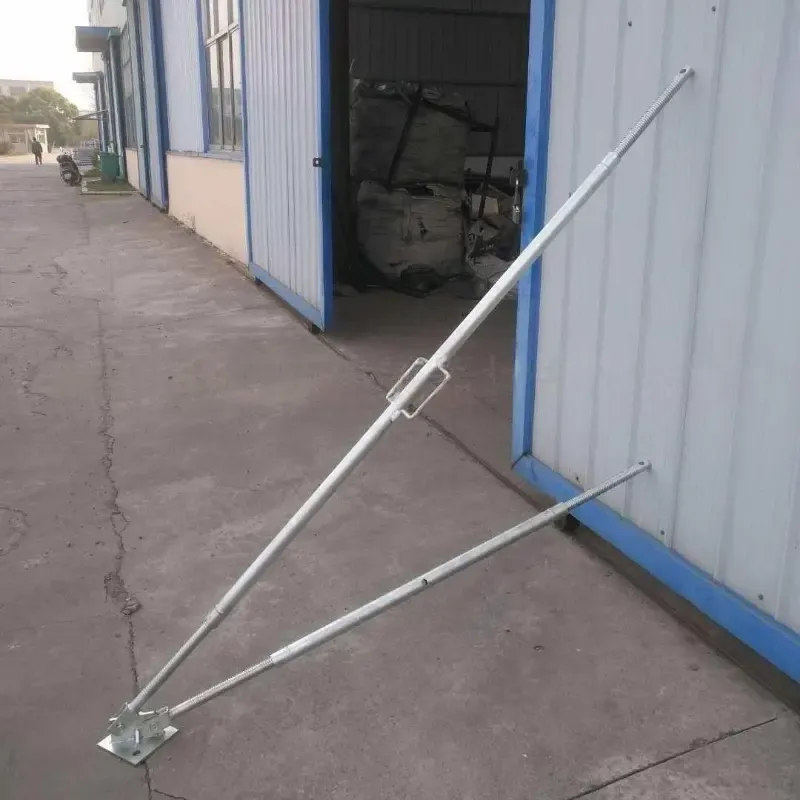

The Hyson Heavy Duty Triangle Prop System is the definitive solution for single-sided concrete casting where traditional tie-rod reinforcement is impossible. Whether you are constructing subway station linings, deep basement exterior walls, or flood control retaining walls, our system safely transfers fresh concrete pressure directly to the foundation through a robust diagonal bracing structure.
Compatible with standard steel or timber (H20) formwork panels, this system offers contractors a reliable, high-precision partner for complex infrastructure projects.
Technical Specifications
| |
| High-Grade Q235B / Q345B Carbon Steel |
| 3.0m (Base) / Extensions available up to 8.0m |
| 40kN - 80kN per frame (depending on spacing & height) |
| Hot-Dip Galvanized (HDG) / Powder Coated |

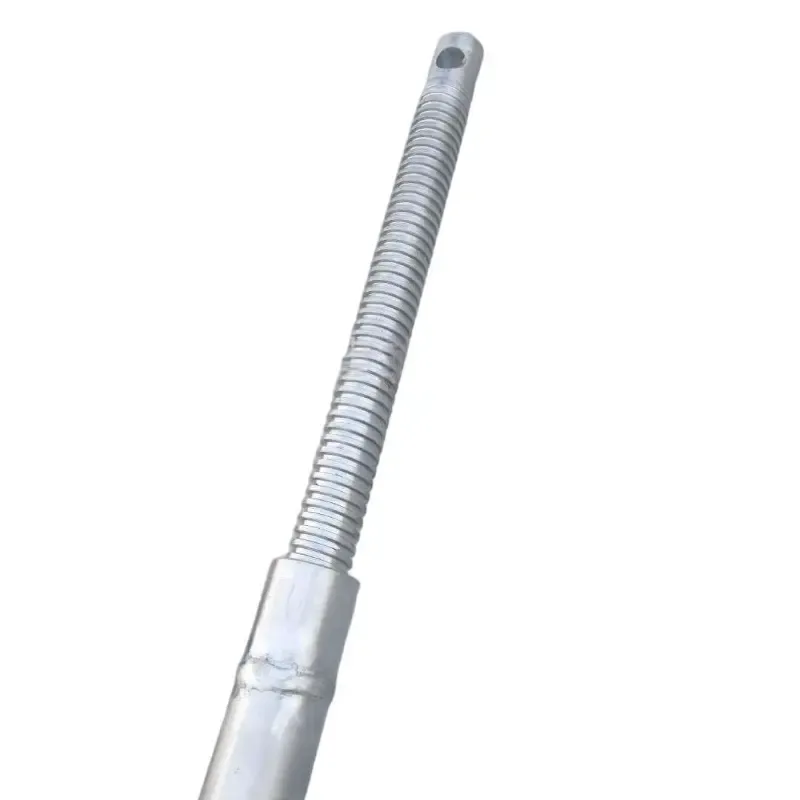

| ±200mm via Heavy Duty Screw Jack |
| CO2 Gas Shielded Welding (Robot + Certified Welders) |
Product Features
- Modular Versatility: The system is composed of standard frames and extension units, allowing flexible assembly to match varying wall heights (up to 8m) while minimizing inventory complexity for rental companies.
- Precision Welding (Hyson Standard): We utilize a proprietary jig-welding process that controls thermal deformation. This ensures that every triangle prop is perfectly square, translating to straighter walls and reduced remedial work for the contractor.

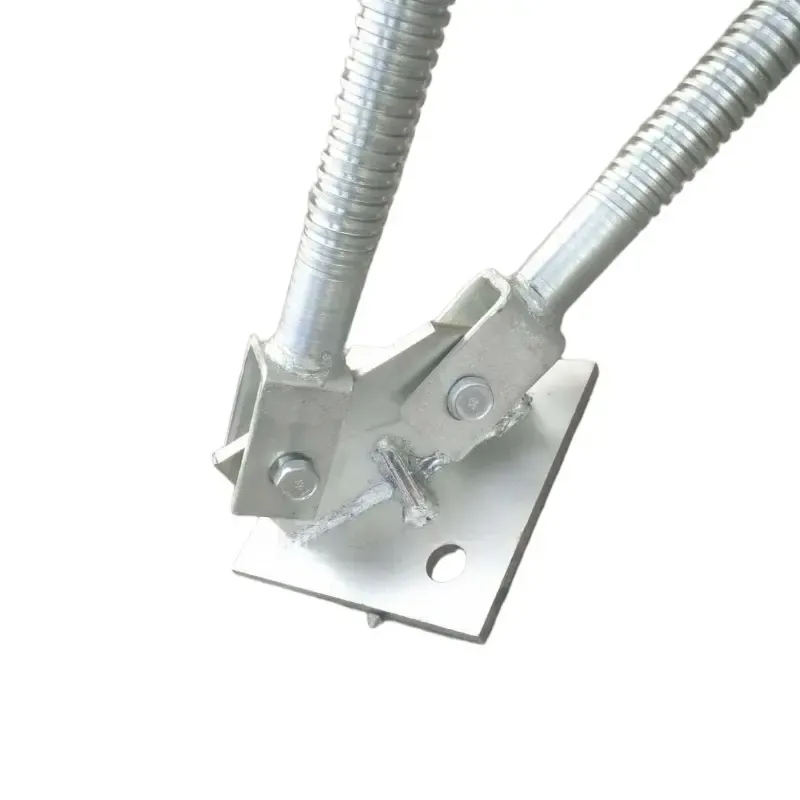

- Rapid Assembly: Features a standardized pin-connection design. A two-person crew can assemble a complete unit in minutes, significantly accelerating the construction schedule compared to makeshift scaffolding solutions.
Application Scenarios
- Urban Underground Space: Subway stations and underground parking lots where casting against soil or existing diaphragm walls is required.
- Water Conservancy Projects: River embankments and flood retaining walls requiring strict waterproofing (no tie-rod holes allowed).
- High-Rise Basements: Perimeter walls in restricted construction sites.
- Precast & Hybrid Construction: Providing heavy-duty temporary bracing for large-scale precast wall panels during installation, ensuring absolute verticality before the final grouting phase.
