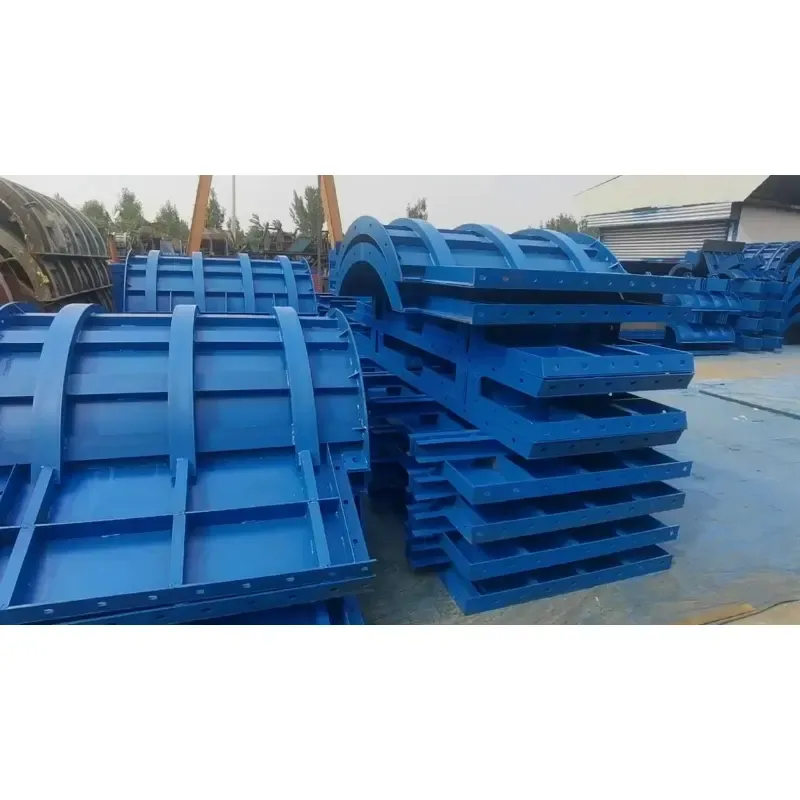

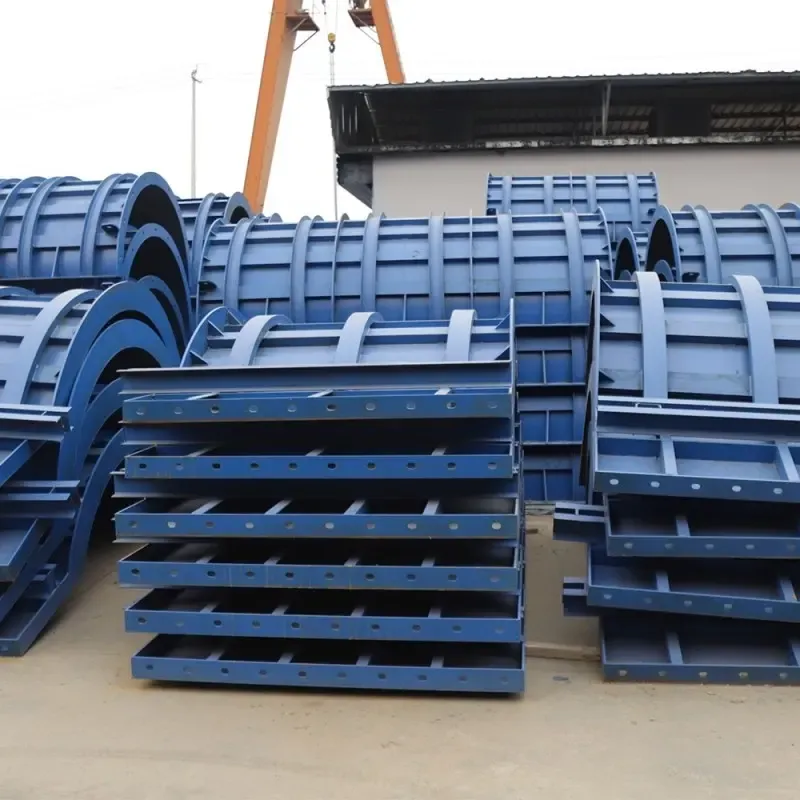

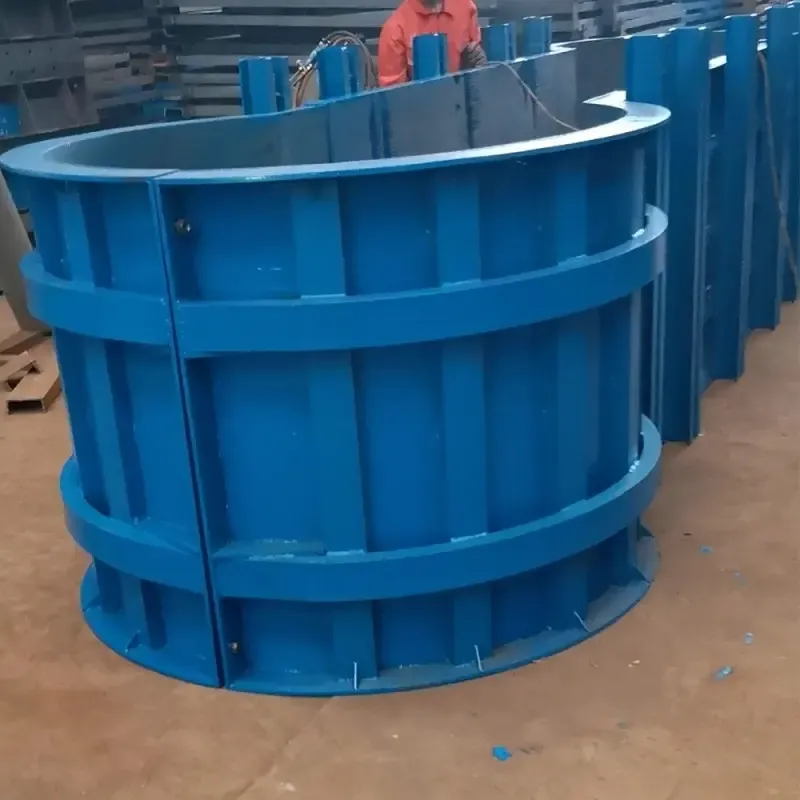

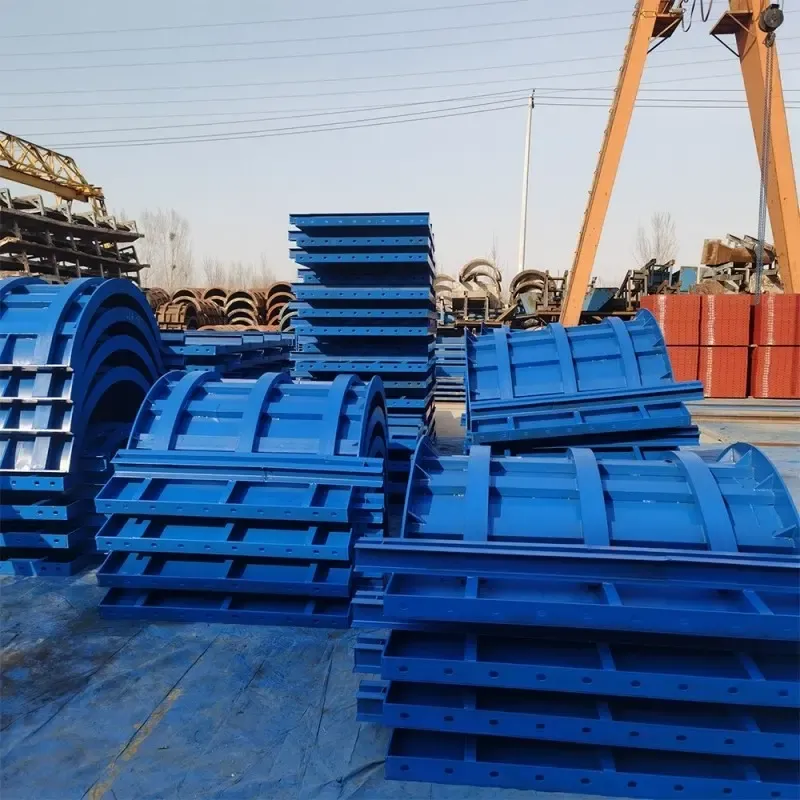

This Tie Beam Formwork is a heavy-duty structural solution designed specifically for connecting bridge piers and reinforcing building foundations. Manufactured from premium Q235B steel with advanced laser-cutting technology, it ensures precise geometric alignment and superior load distribution. We strictly adhere to ISO 9001 quality standards to provide you with a robust, deformation-resistant system that simplifies on-site assembly, accelerates construction timelines, and delivers a flawless concrete finish.
Technical Specifications
| |
| High-Quality Q235B Carbon Steel |
| 5mm / 6mm / 8mm (Based on pressure calculation) |
| 63mm x 40mm Angle Steel / U-Steel Ribs |
| Bolt Connection / Pin Connection |
| ± 1.5mm (High precision for seamless joints) |
| Anti-rust Paint / Oiled / Galvanized |
| ≥ 300 times (Ideal for rental & long-term projects) |
| Adjustable lengths & chamfer strips available |
Product Features
Leak-Proof Joint Technology
Utilizing our patented sealing design and precision CNC cutting, the joints between panels are tight and secure. This prevents concrete leakage, ensuring the structural integrity of the beam and protecting reinforcement from corrosion.
High Durability for Rental Fleets
Constructed with reinforced ribs and high-grade steel, our forms resist deformation even after repeated handling and pouring. This durability makes them a perfect asset for equipment rental companies seeking low maintenance costs.
Efficient Assembly & Stripping
The user-friendly design features standardized bolt holes and lifting lugs. Workers can assemble the system quickly with minimal training, reducing labor intensity and accelerating the foundation schedule.
Customizable & Adjustable
We understand that foundation designs vary. Hyson offers adjustable tie beam molds that can be expanded or retracted to fit different span requirements, offering maximum versatility for contractors.
Application Scenarios
This system is engineered for critical load-bearing connections in infrastructure projects.：

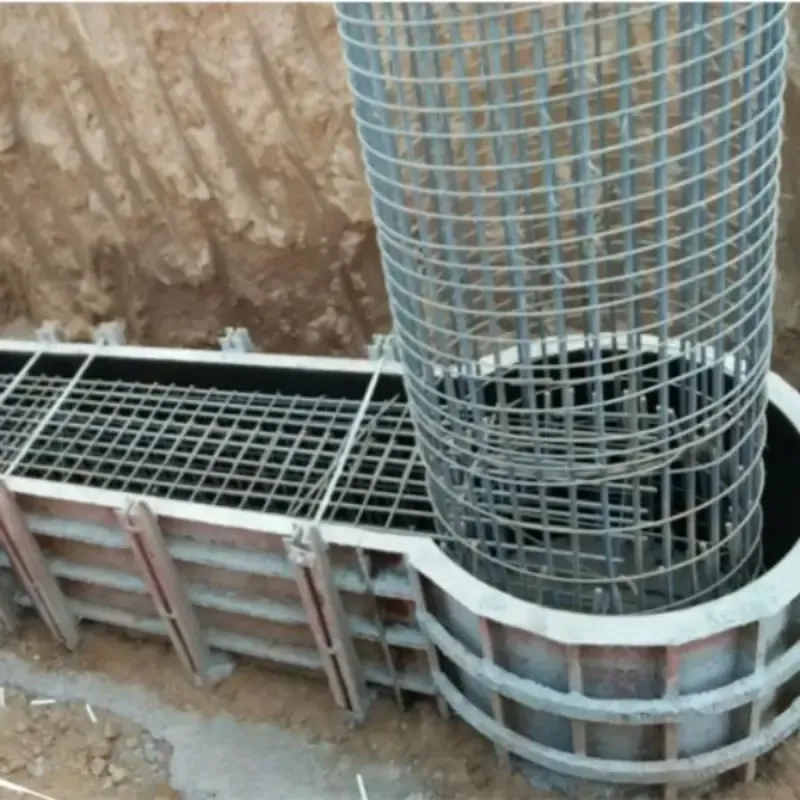

- Bridge Substructure: Connecting pier columns (Tie Beams) to increase lateral stiffness and seismic resistance.
- Deep Foundations: Grade beams spanning between pile caps in industrial facilities or high-rise buildings.
- Precast Beam Production: Perfect for precast yards requiring high-repetition molds for standardized tie beams, ensuring clean edges and "Fair-faced" concrete results.
