Steel Wall Formwork | Heavy-Duty Large Area Concrete Wall Forms
The Steel Wall Formwork is a professional-grade solution carefully crafted for high-precision concrete construction in bridges, tunnels, and buildings. Relying on premium Q235B steel and advanced welding technology, it ensures exceptional load-bearing capacity and a flawless, fair-faced concrete finish. We strictly control every manufacturing step to provide you with a durable, easy-to-assemble system that significantly reduces labor costs and accelerates your project timeline.
Hyson's Steel Wall Formwork System, a heavy-duty solution engineered for the rapid construction of shear walls, core tubes, and retaining walls. Unlike traditional timber or small-panel systems, our "Large Area" steel forms are designed to minimize joints and maximize pouring speed. Backed by 15 years of manufacturing expertise in Nantong and trusted by global giants like CCCC, our forms are built to withstand high concrete pressures while delivering a mirror-like finish.
For contractors, this means significantly reduced labor costs and faster cycle times. For rental companies, our use of premium Q235 steel and advanced anti-corrosion treatments ensures exceptional durability and a high ROI over hundreds of reuse cycles. Whether you are building a skyscraper in Dubai or a water treatment plant in Australia, Hyson’s modular design adapts to your specific structural requirements with ease.
Technical Specifications
Specification | Details |
Material | High-Strength Q235B Carbon Steel |
Face Sheet Thickness | 4mm / 5mm / 6mm (Customizable upon request) |
Standard Widths | 300mm, 600mm, 900mm, 1200mm, 1500mm |
Standard Heights | 1200mm, 1500mm, 2400mm, 3000mm |
Load Bearing Capacity | 60 kN/m² - 80 kN/m² (Designed for high pouring rates) |
Surface Treatment | Anti-rust Paint / Powder Coating / Galvanized |
Edge Profile | F-Profile or Flat Steel with precise slot holes |
Certification | ISO 9001:2015 |
Product Features
- Superior "Fair-Faced" FinishOur CNC-machined panels and patented welding techniques ensure a perfectly flat surface. This eliminates the need for secondary plastering, saving time and material costs for the contractor.
- High Load-Bearing CapacityReinforced with a scientifically designed rib layout, our wall forms can withstand concrete pressures up to 80 kN/m². This allows for faster pouring rates without risking deformation or blowouts.
- Modular & Easy AssemblyDesigned with standardized connection slots and fewer tie-rods. The large panel sizes reduce the number of connections required, speeding up assembly and stripping by 30% compared to small-panel systems.
- Built for LongevityWe use a specialized anti-rust coating process that penetrates deep into the steel pores. This makes the forms easy to clean after use and highly resistant to corrosion, ideal for long-term rental fleets.
Application Scenarios
Our Wall Formwork system is versatile and widely used in complex civil engineering and building construction.- Infrastructure & Bridges: Bridge piers, abutments, and tunnel linings.

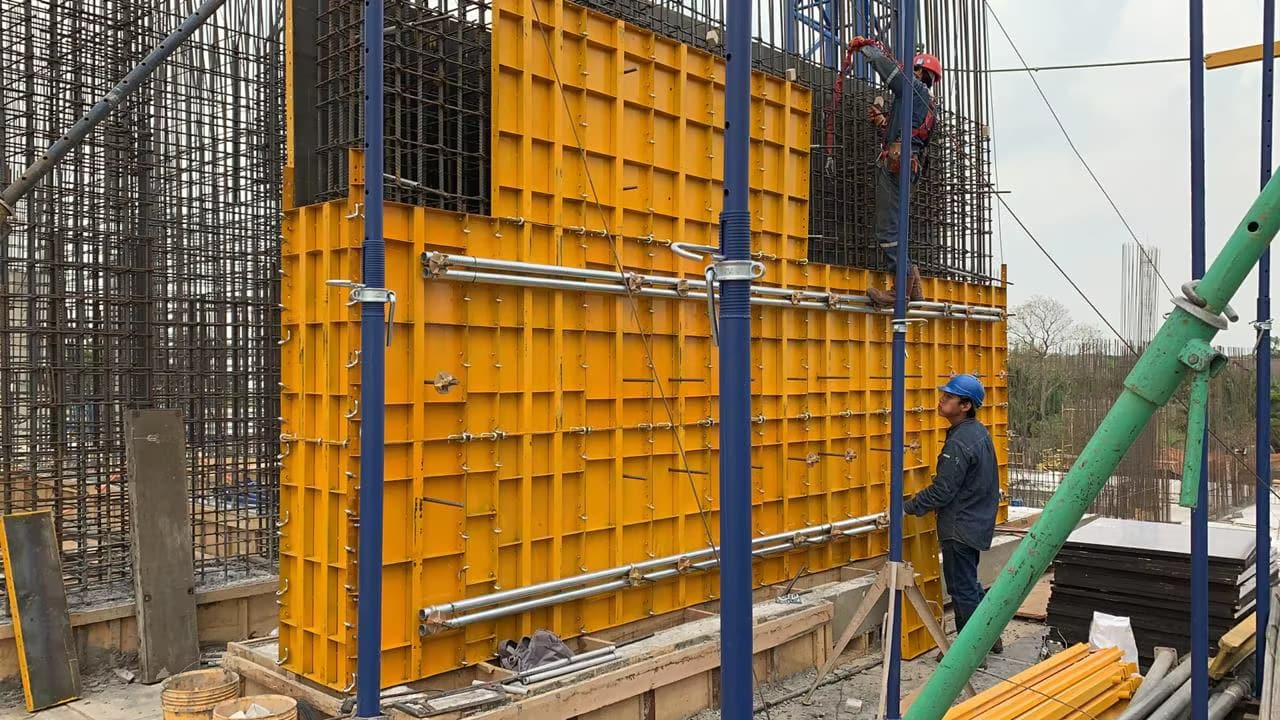

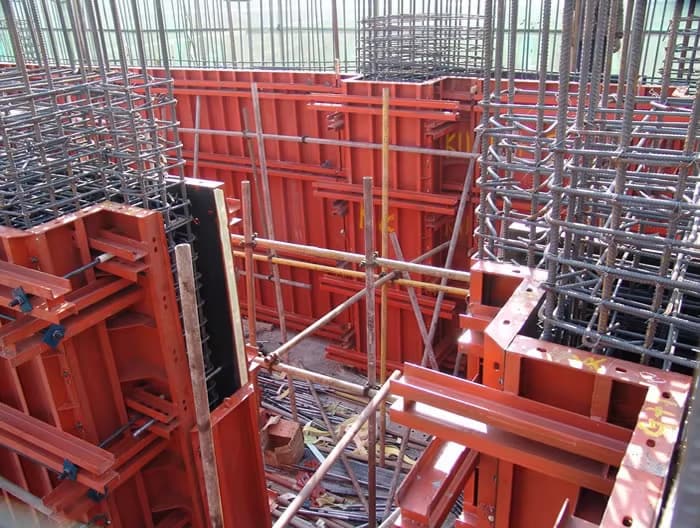

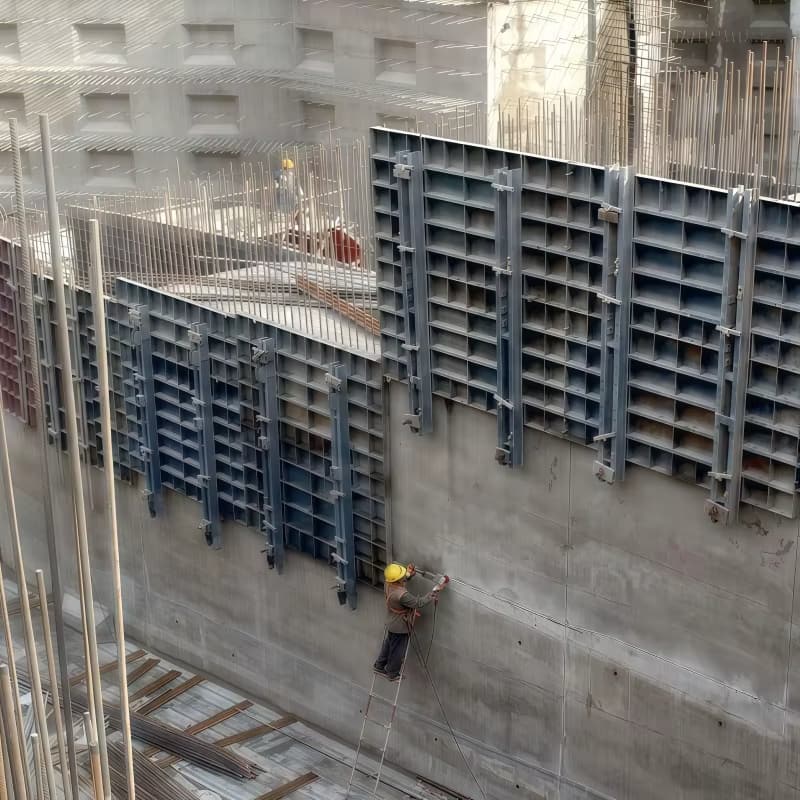

- High-Rise Buildings: Shear walls, core walls, and basement retaining walls.
- Water Engineering: Sewage treatment plants, water tanks, and dams requiring high water-tightness.
- Precast Concrete Production: Ideal for precast manufacturing plants producing modular wall panels and sound barriers, ensuring clean edges and exact dimensions.
